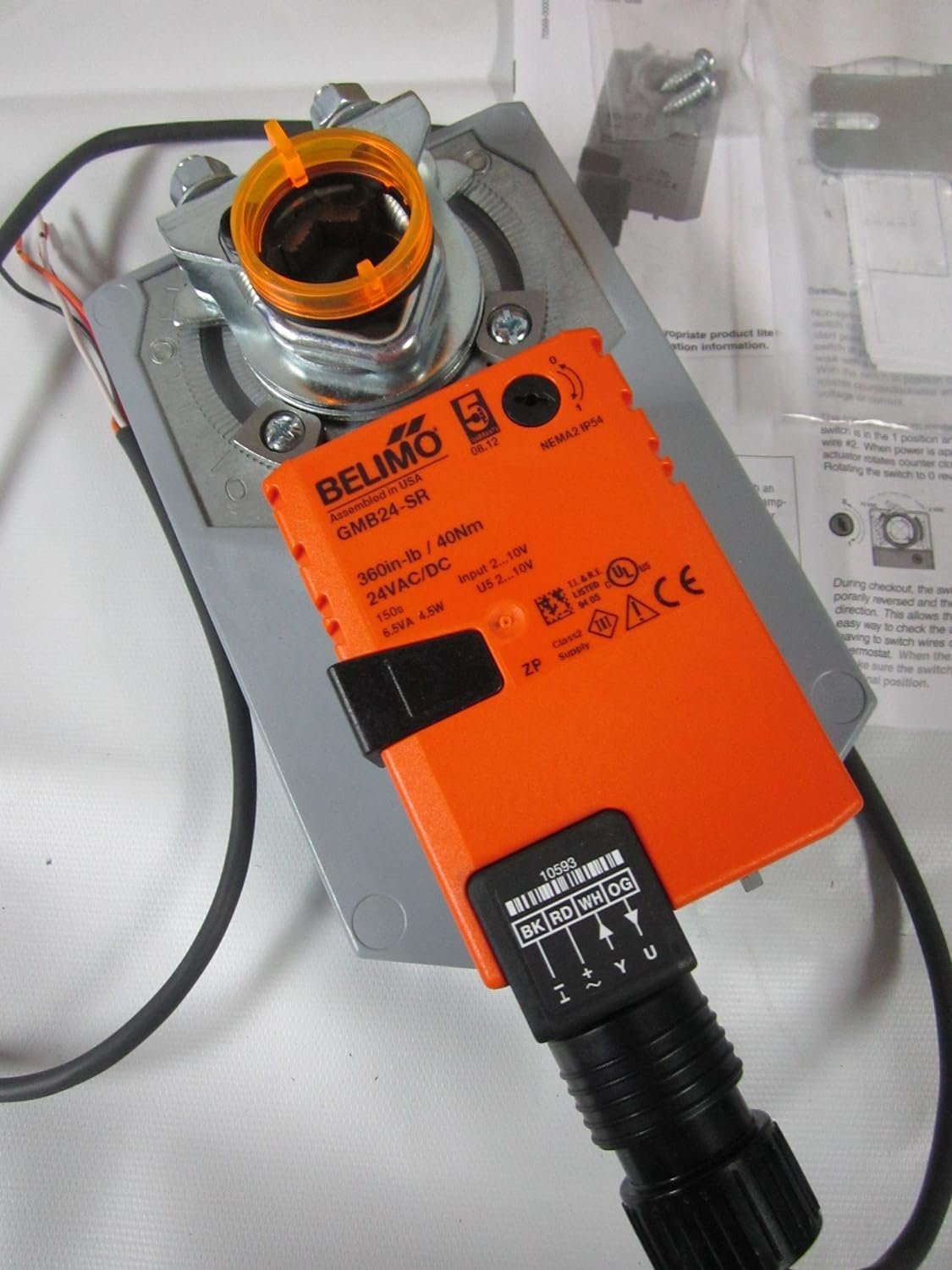

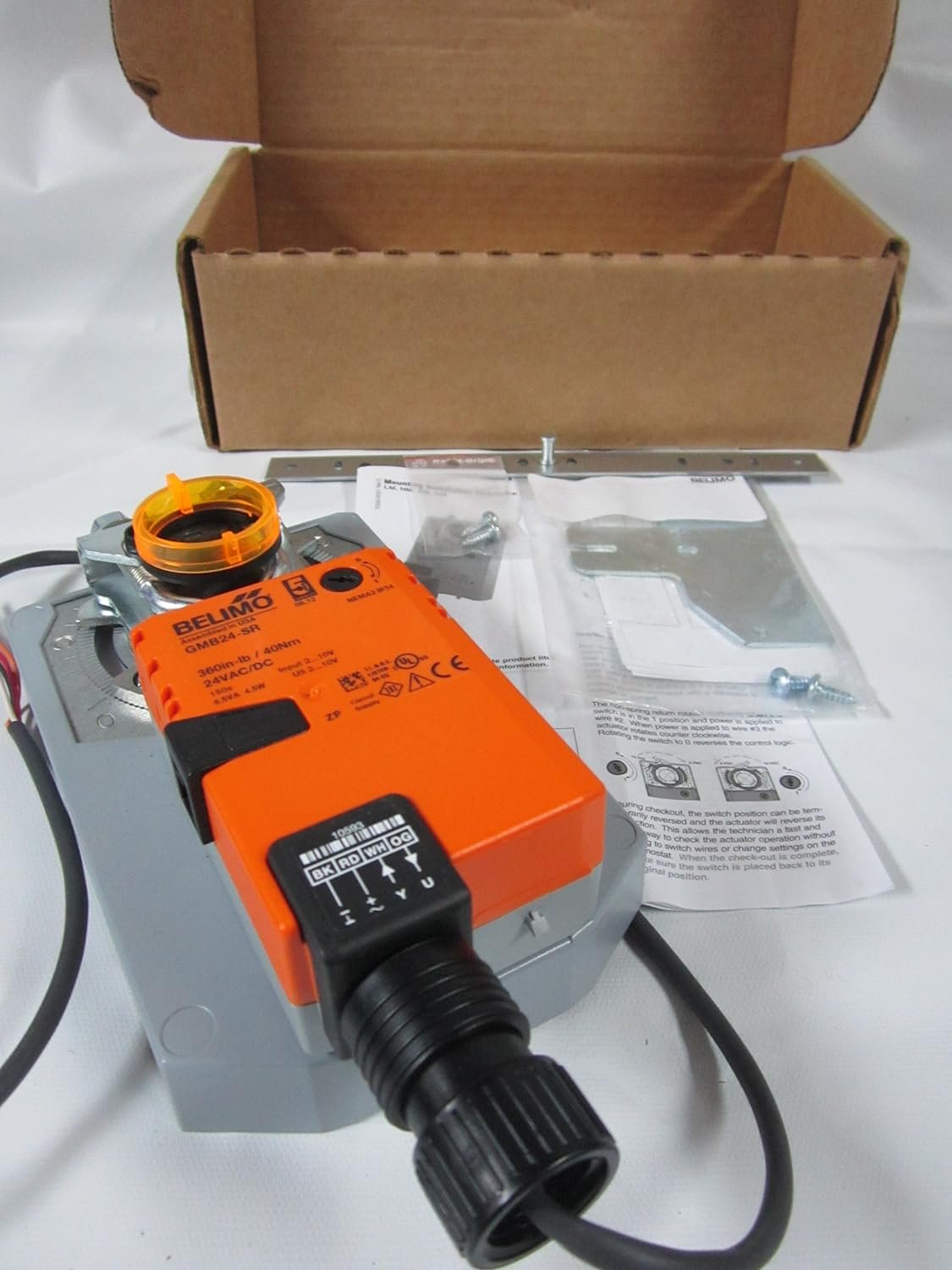

BELIMO GMB24-SR ,IP54 - NEMA 2 ,Torque motor 360 in-lb [40 Nm] ,Nominal voltage AC/DC 24 V ,Power Consumption (Running) : 4.5 W ,Power Consumption (Holding) : 2 W ,Power Consumption For Wire Sizing : 6.5 VA ,Control Modulating ,Direction Of Motion Motor : selectable with switch 0/1 ,Weight : 3.9 lb [1.8 kg]
หมวดหมู่ : PRODUCTS , ELECTRICAL , BELIMO , NON FAIL-SAFE ACTUATORS ,
แบรนด์ : BELIMO distributor
Share
จำหน่าย Non Fail-Safe Actuators ยี่ห้อ Belimo รุ่น GMB24-SR ราคาถูก Damper Actuator, Proportional Control, 360 in-lb [40 Nm], Non fail-safe, AC/DC 24 V, Modulating, 2...10 V ตัวแทนจำหน่ายประเทศไทย
Belimo GMB24-SR Basic Non Fail-Safe modulating actuator สำหรับการควบคุมแดมเปอร์ในการใช้งาน HVAC เชิงพาณิชย์ทั่วไป
• Torque motor 360 in-lb [40 Nm]
• Nominal voltage AC/DC 24 V
• Control Modulating
• Position feedback 2...10 V

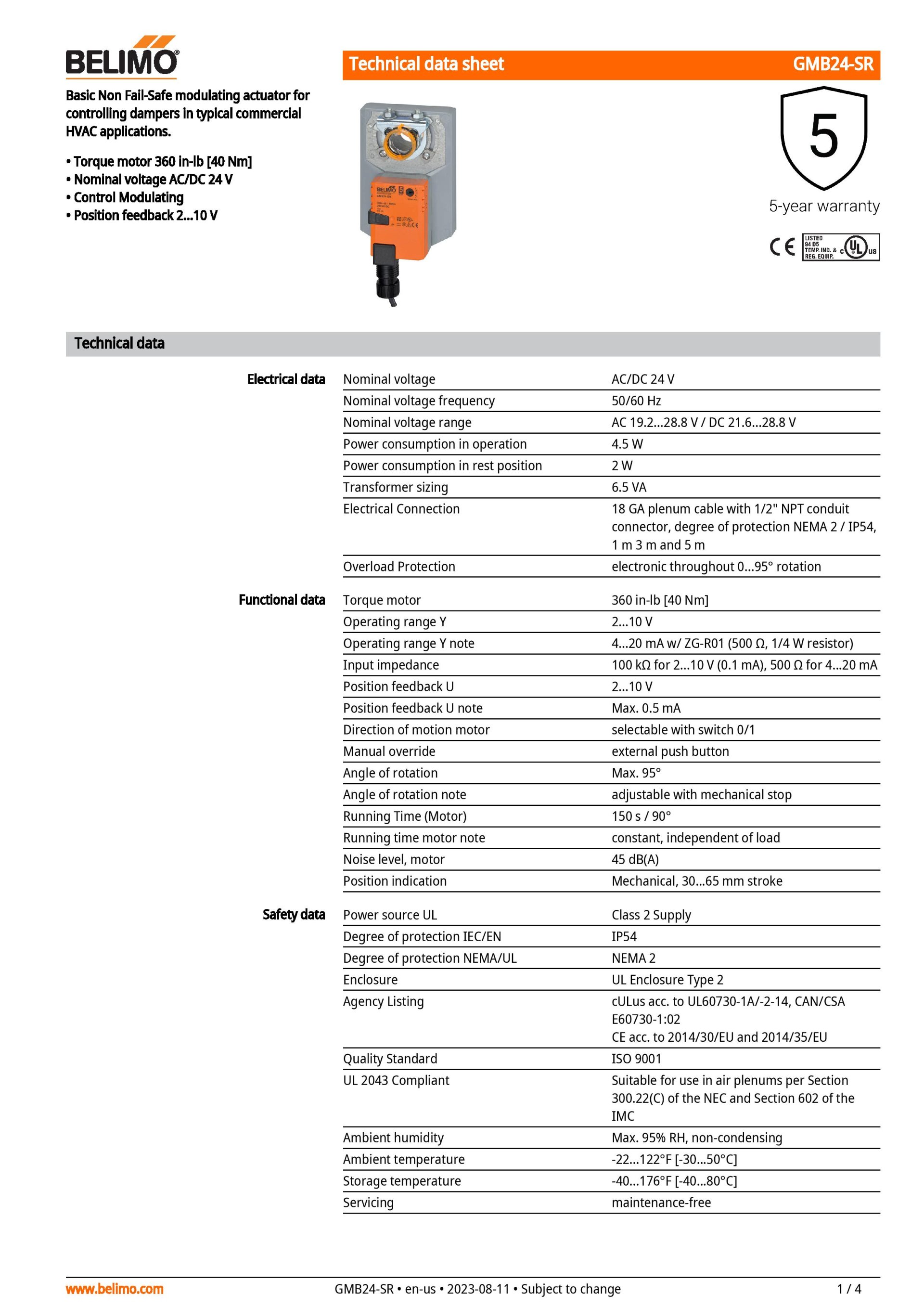

Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power consumption (running) | 4.5 W |
| Power consumption (holding) | 2 W |
| Power Consumption For Wire Sizing | 6.5 VA |
| Connection Supply Control | Cable 1 m, 2 x 0.75 mm² |
| Torque | 360 in-lb [40 Nm] |
| Control type | DC 2...10 V |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Manual override | External push button |
| Angle of Rotation | 95 |
| Running Time (Motor) | 150 s / 90° |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | -22...122°F [-30...50°C] |
| Weight | 3.9 lb [1.8 kg] |

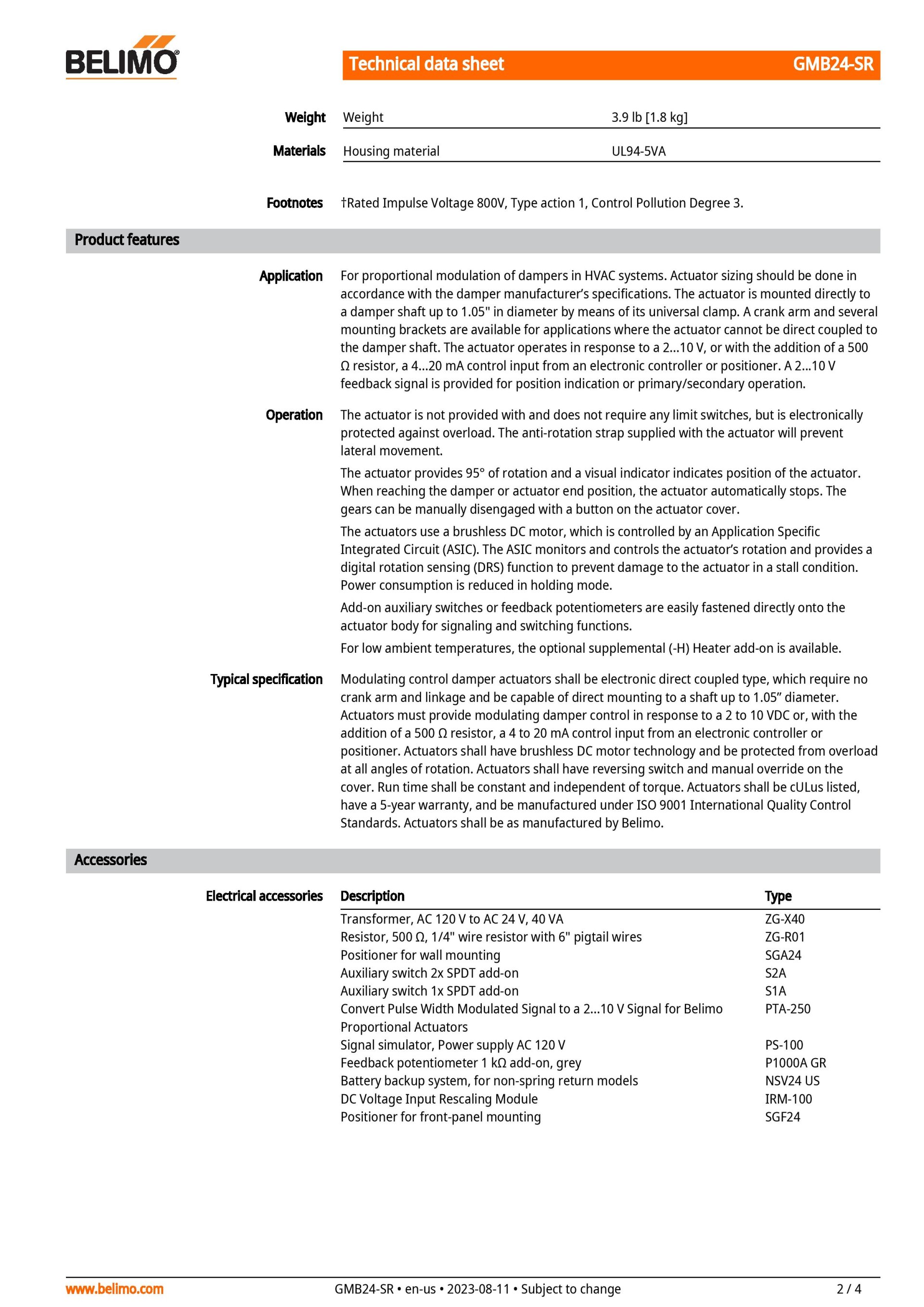

Product features
Application

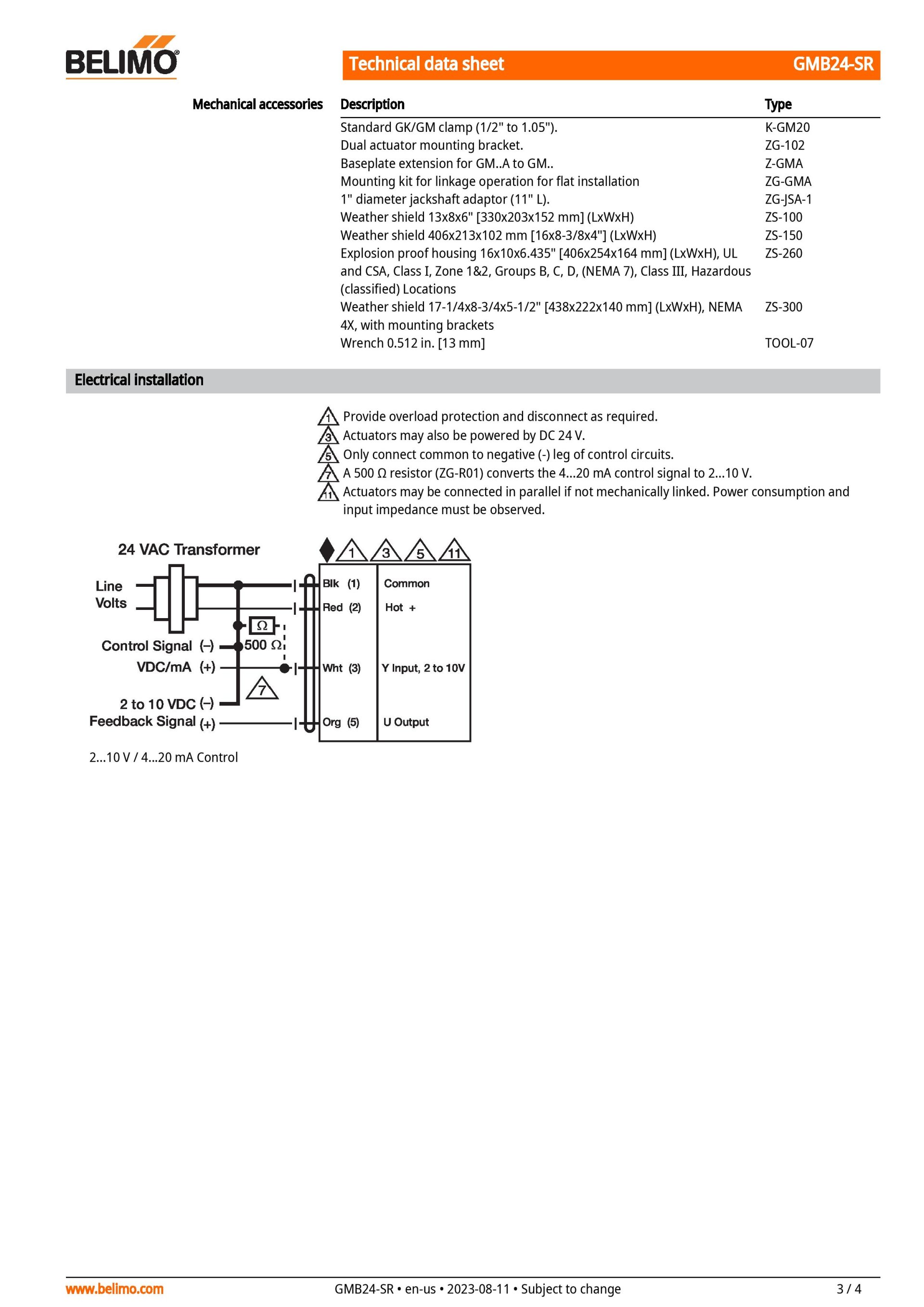

• For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2...10 V, or with the addition of a 500 Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication or primary/secondary operation.
Operation
• The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.
• The actuator provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.
• The actuators use a brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.
• Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.
• For low ambient temperatures, the optional supplemental (-H) Heater add-on is available
Typical specification
• Modulating control damper actuators shall be electronic direct coupled type, which require no crank arm and linkage and be capable of direct mounting to a shaft up to 1.05” diameter. Actuators must provide modulating damper control in response to a 2 to 10 VDC or, with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. Actuators shall have brushless DC motor technology and be protected from overload at all angles of rotation. Actuators shall have reversing switch and manual override on the cover. Run time shall be constant and independent of torque. Actuators shall be cULus listed, have a 5-year warranty, and be manufactured under ISO 9001 International Quality Control Standards. Actuators shall be as manufactured by Belimo
