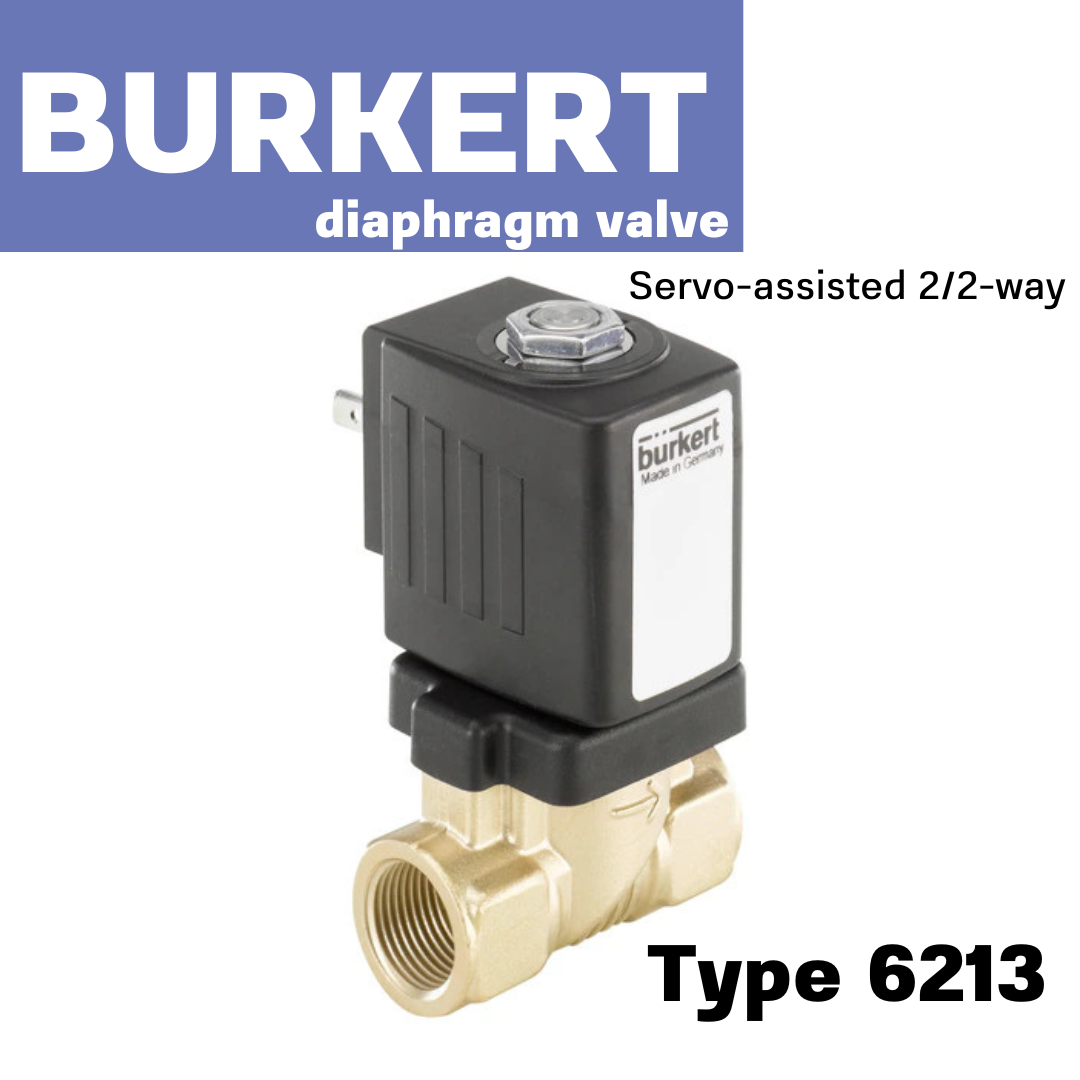

ตัวแทนจำหน่าย burkert thailand Water Solenoid Valves ราคาถูก รุ่น 6213ev Servo-assisted 2/2-way (diaphragm valve)

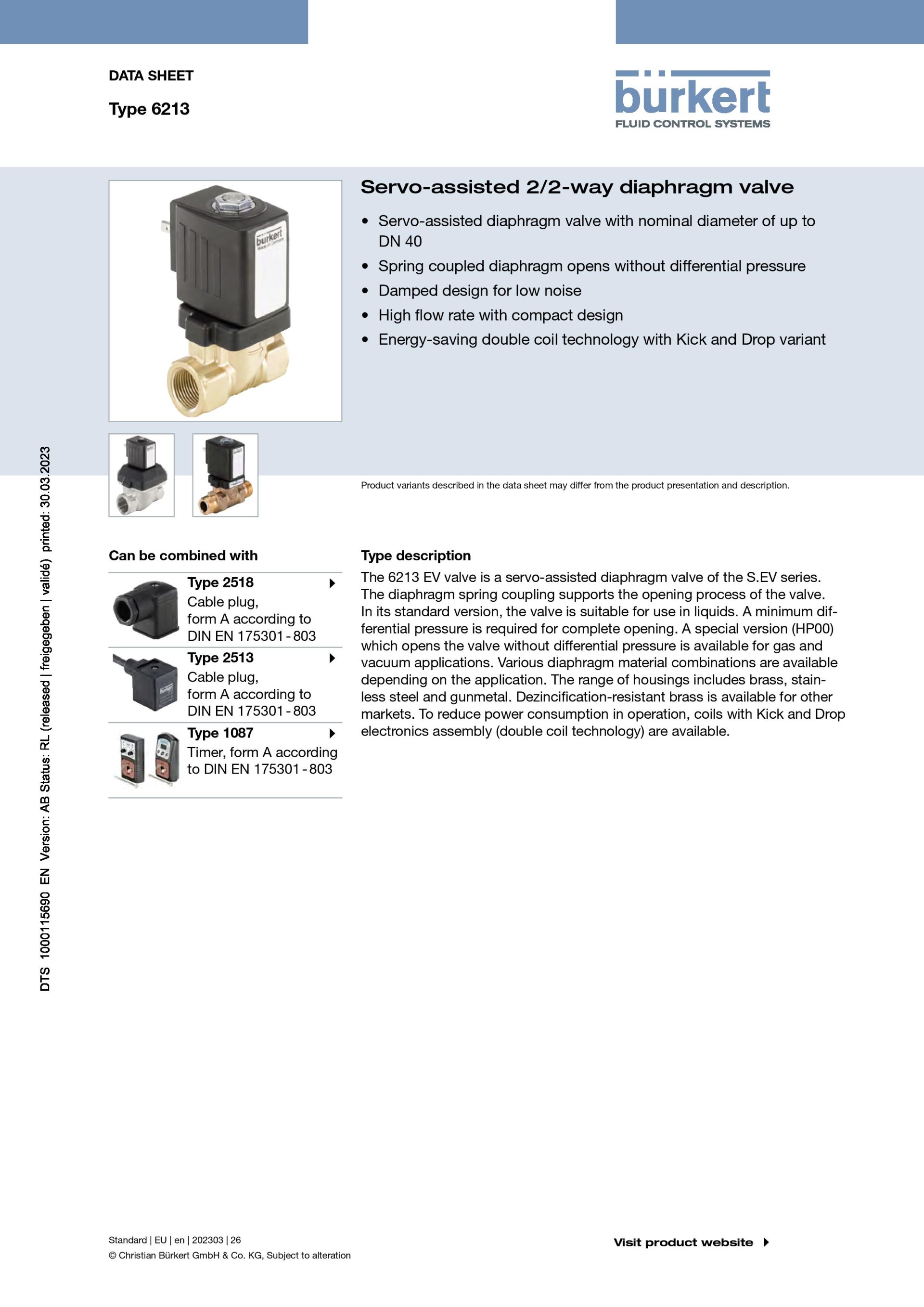

Type Description
The 6213 EV valve is a servo-assisted diaphragm valve of the S.EV series. The diaphragm spring coupling supports the opening process of the valve. In its standard version, the valve is suitable for use in liquids. A minimum differential pressure is required for complete opening. A special version (HP00) which opens the valve without differential pressure is available for gas and vacuum applications. Various diaphragm material combinations are available depending on the application. The range of housings includes brass, stainless steel and gunmetal. Dezincification-resistant brass is available for other markets. To reduce power consumption in operation, coils with Kick and Drop electronics assembly (double coil technology) are available.
• Servo-assisted diaphragm valve with nominal diameter of up to DN40
• Spring coupled diaphragm opens without differential pressure
• Damped design for low noise
• High flow rate with compact design
• Energy-saving double coil technology with Kick and Drop variant
For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.
ติดต่อขอใบเสนอราคา ช่องทางโทรศัพท์ และ ไลน์
- คุณจุฑามาศ (กุ๊กไก่) : 02-943-4814
E-mail : pneutecthai@gmail.com
Line : @pneutecthai
